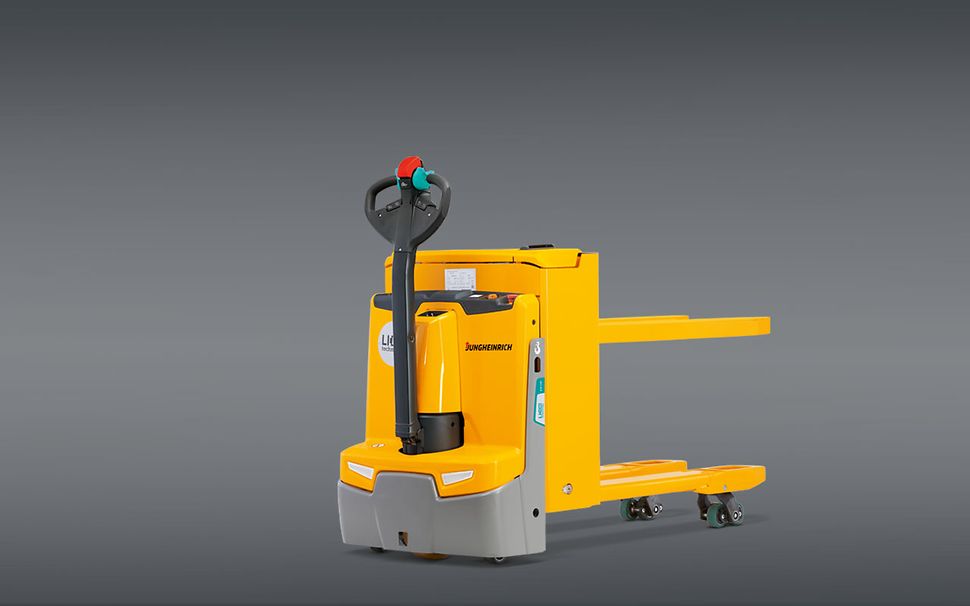

Stage EJE 220r_225r

Låglyftare/ledtruck för bredvidgående förare (2,2-2,5t)

  • 122 - 122 mm
  • 2000 - 2500 kg
  • Crawl speed button
  • Level adjustment with ramp lift
  • Robust and powerful

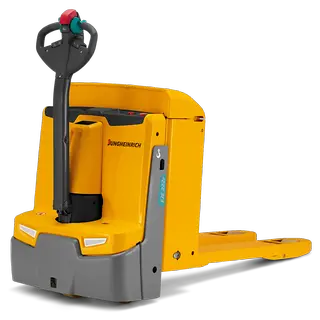

EJE 220r/ 225r

The EJE Series 2 pallet trucks are used when maximum throughput is required: For HGV loading and unloading using the ramp. The additional patented ramp lift which works independently from the normal lift, facilitates trouble-free loading and unloading of the first row of pallets in HGVs. This allows for level adjustment on ramps with gradients up to 15 %.

The EJE 2 has special features:

  • Powerful, innovative 1.6 kW 3-phase AC drive motor for maximum throughput.
  • Extremely durable frame for exceptionally high operational demands.
  • State-of-the-art control electronics for perfect handling.
  • Excellent energy management for low operating costs.
  • Large batteries for long operating times.

It also offers ergonomic advantages. The low-mounted long tiller ensures safe operation by maintaining adequate distance between the operator and truck. The crawl button assists in extremely confined areas. It allows the truck to travel at an automatically reduced speed with the tiller upright.

The EJE can be equipped with batteries up to 375 Ah. In combination with state-of-the-art and economical 3-phase AC technology, longer operating times are achieved than with conventional technology. With the option of lateral battery exchange, multi-shift operation up to 24 hours is easily achievable.

The completely redeveloped multi-function tiller head is full of innovations:

Sealed sensor system (IP 65) for maximum breakdown.

  • Contact-free electronic rocker switches for ergonomically perfect operation with every tiller position.
  • Ergonomically arranged switches.


Med vår litiumjonlösning kan du med lätthet lämna konkurrenterna bakom dig: Maximal prestanda med upp till 20% lägre energiförbrukning. Tre gånger så långt serviceliv. Extremt korta uppladdningstider. Noll underhåll. Läs mer om hur du sänker dina kostnader långsiktigt.



Modell Max. lyftkapacitet Max. lyft (h3) Kör­
EJE 220r2000 kg122 mm6 km/h1763 mm24 V
EJE 225r2500 kg122 mm6 km/h1835 mm24 V
